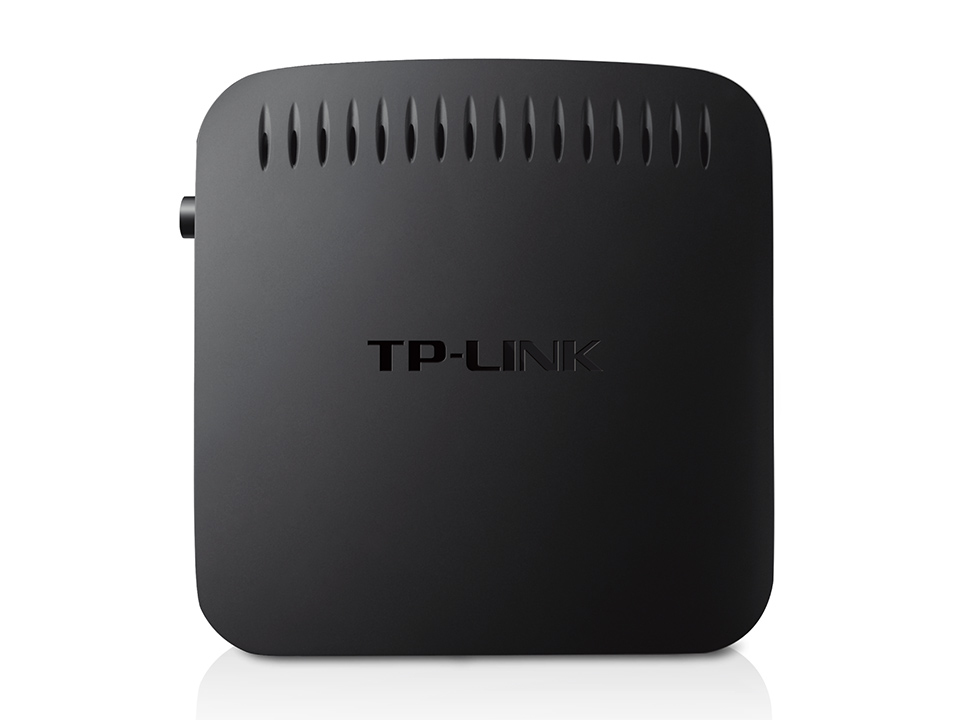

Terminal GPON TP-Link de 1 Puerto Gigabit ONU Bridge

CARACTERÍSTICAS DE HARDWARE
Interface 1 10/100/1000Mbps RJ45 Ports
1 SC/APC Port
Botón 1 Power On/Off Button
1 RESET Button
Fuente de Alimentación Externa 9VDC/0.6A
Estándares IEEE IEEE 802.3, 802.3u, 802.1Q, 802.1p
Velocidad de Datos Upstream:1.244Gbps
Downstream:2.488Gbps
Dimensiones (W X D X H) 4.0*1.5*4.2 in.（102.7 x 37.9 x 106.9mm）
Distancia 0~ 20Km Max
Estándares GPON ITU-T G.984.1, G.984.2, G.984.3, G.984.4
Módulo Óptico Class C+
Receptor APD-TIA
Transmisor DFB Laser
Longitud de Onda Upstream:1310nm
Downstream:1490nm
CARACTERÍSTICAS DE SOFTWARE
Calidad de servicio Service Flow Classification based on VLAN
Schedule rules Support SP/WRR
Upstream Priority Label Support 802.1D User Priority
Rate Limit and Traffic shaping
Congestion Control Support Tail-Drop
VLAN 802.1Q tag VLAN
VLAN transparent mode/VLAN translation mode/VLAN trunk mode
Authentication based on SN and Password
VLAN Auto Detect
Seguridad AES Encryption
Packet Filter based on VLAN
Administración Managed by Web, OMCI and Telnet,
Specified the management IP,
Reset to Factory default by Reset button or Web UI,
Real-time statistics, Optical Diagnostic
Características Avanzadas Upstream and Downstream FEC
Dynamic Bandwidth Allocation(DBA) support NSR/SR
Up to 16 T-CONTs and 256 GEM Ports
Optical power detection, Dying Gasp
Terminal Silent mechanism
802.3az EEE Energy Conservation
IGMP IGMP v2/v3
IGMP Snooping/Proxy
OTROS
Certificacion CE, FCC, RoHS
Contenidos del Paquete TX-6610
RJ-45 Ethernet Cable
Quick Installation Guide
Power Adapter
Requisitos del Sistema Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Ambiente Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
